Colour Changing Linear Lighting Systems
Architectural colour control for professional specification
Flexible architectural linear lighting systems engineered to deliver controllable colour and white light within joinery, coves, shelving, and concealed profiles.
Designed for seamless integration into linear channels and aluminium extrusions, Ambience Vector Linear colour systems provide consistent output, smooth colour mixing, and stable performance across hospitality, retail, commercial, and experiential environments.
Available in RGB, RGBW and RGB-CCT configurations, the range supports both feature and functional illumination from a single continuous light line while maintaining efficient installation and clean architectural integration.
Ambience Vector Linear — Colour Changing
Specification-grade RGB, RGBW and RGB-CCT linear systems
High-density SMD linear platforms providing adjustable colour, dedicated white output, or combined colour and tunable white control.
Engineered for uniform diffusion, accurate colour consistency, and stable output across extended runs and complex installations.
Performance
RGB, RGBW and RGB-CCT configurations / consistent colour mixing and uniform diffusion /24V constant voltage multiple LED densities and output options / short cut increments for precise fitting / IP20 / IP65 / IP67 protection / 50,000h rated lifetime / 5-year warranty
Bespoke Project Preparation
Supplied cut-to-length with factory-soldered tails, individually labelled to match design schedules, and delivered installation-ready to minimise site time and ensure consistent quality.

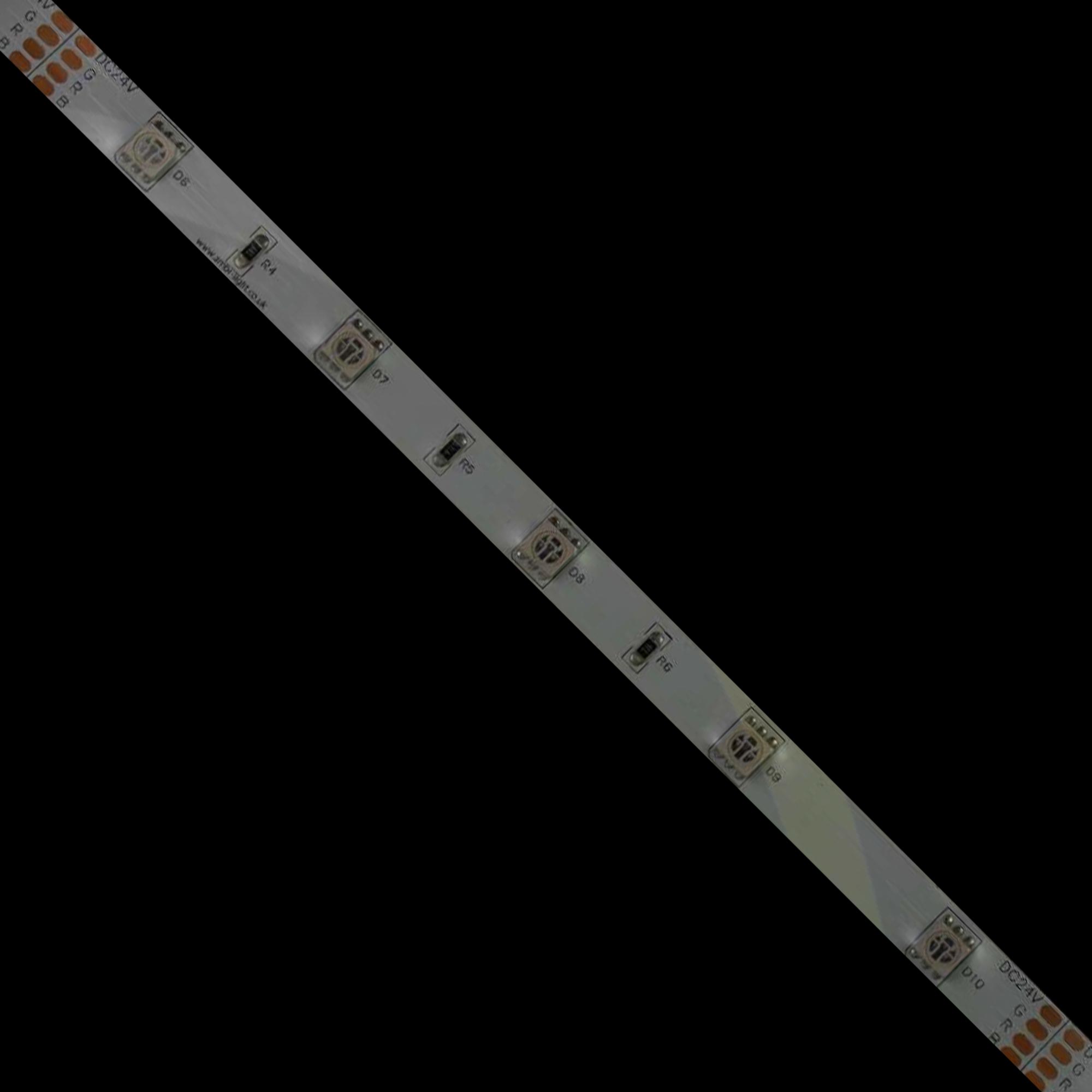

Ambience Vector Linear 5030-RGB
Low-output RGB architectural linear lighting for subtle feature and accent applications.
A 30 LED/m system engineered for controlled colour effects and discreet integration within joinery and shallow profiles where lower brightness and tighter detailing are required.
Ordering Code: AL-5050-30-RGB
Performance
24V
7.2 W/m
244 lm/m (combined)
RGB output: Red 58 lm/m • Green 144 lm/m • Blue 42 lm/m
30 LEDs/m
10 mm PCB
165 mm cut points
IP20 / IP65 / IP67
Typical applications
Joinery • shelving • feature niches • bar detailing • accent lighting • decorative architectural elements
Ambience Vector Linear 5060-RGB
General-purpose RGB architectural linear lighting for continuous colour features.
A balanced 60 LED/m system providing increased brightness and improved uniformity for coves, recesses, and medium-length installations.
Ordering Code: AL-5050-60-RGB
Performance
24V
14.4 W/m
531 lm/m (combined)
RGB output: Red 133 lm/m • Green 310 lm/m • Blue 88 lm/m
60 LEDs/m
10 mm PCB •
100 mm cut points
IP20 / IP65 / IP67
Typical applications
Coves • ceiling recesses • retail displays • hospitality interiors • architectural accents • continuous colour lines

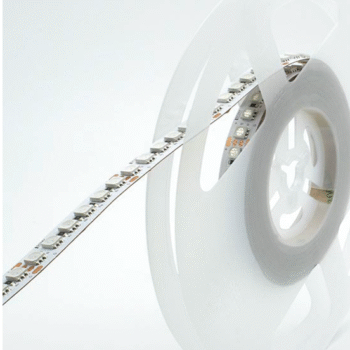

Ambience Vector Linear 40120-RGB – High Density RGB
High-density RGB architectural linear lighting for smoother diffusion and higher output.
Designed for installations requiring improved uniformity and extended runs, delivering seamless colour mixing with reduced visible spotting.
Ordering Code: AL-4040-120-RGB
Performance
24V
14.4 W/m – 620 lm/m (combined)
28.8 W/m – 1,130 lm/m (combined)
RGB output (14.4 W): Red 153 • Green 342 • Blue 125 lm/m
RGB output (28.8 W): Red 265 • Green 689 • Blue 176 lm/m
120 LEDs/m
8 mm PCB
50 mm cut points
IP20 / IP65 / IP67
Typical applications
Long coves • wall washing • large features • retail environments • hospitality venues • continuous architectural lighting

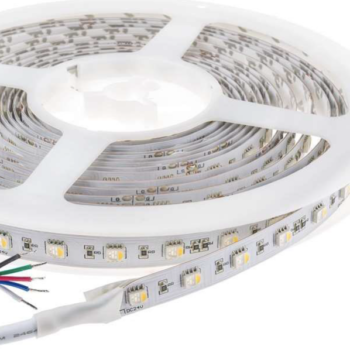

Ambience Vector Linear 5060-RGBW
RGBW architectural linear lighting with dedicated white channel for combined feature and functional illumination.
Provides colour-changing output and dedicated white light from a single linear source for feature and functional applications.
Ordering Code: AL-5050-60-RGB-W
Performance
24V
19.2 W/m
1,200 lm/m (combined)
60 LEDs/m
12 mm PCB
100 mm cut points
IP20 / IP65 / IP67
RGB + 2700K / 3000K / 4000K / 6500K or Amber
Typical applications
Hospitality venues • restaurants • reception areas • retail interiors • adaptable spaces • combined task and feature lighting
Ambience Vector Linear 50120-RGBW — High Density RGBW
High-density RGBW architectural lighting for enhanced uniformity and increased output.
Designed for larger architectural features requiring stronger illumination and smoother colour blending across extended runs.
Ordering Code: AL-5050-120-RGB-W
Performance
24V
19.2 W/m • 1,300 lm/m (combined)
120 LEDs/m
12 mm PCB
50 mm cut points
IP20 / IP65 / IP67
RGB + 2700K / 3000K / 4000K / 6500K or Amber
Typical applications
Large coves • feature ceilings • retail environments • hospitality interiors • continuous light lines • premium architectural detailing
Ambience Vector Linear 5060-RGB-CCT
Combined RGB and tunable white architectural linear lighting for colour and white control from a single system.
Integrates colour-changing capability with adjustable white output, enabling dynamic scenes and functional illumination from a single continuous system.
Ordering Code: AL-5050-60-RGB-CCT
Performance
24V
24 W/m • 1,775 lm/m (combined)
60 LEDs/m • 5050 package
12 mm PCB • 100 mm cut points
IP20 / IP65 / IP67
RGB + tunable white (2,200K / 2,700K–6,500K)
Typical applications
Multi-use spaces • hospitality • retail concepts • exhibition areas • adaptive interiors • day-to-night and scene-based lighting
