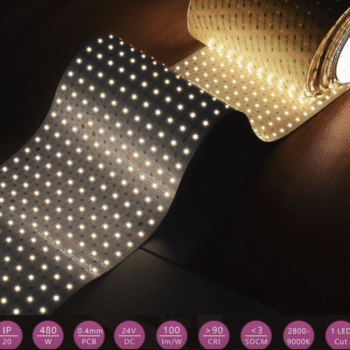

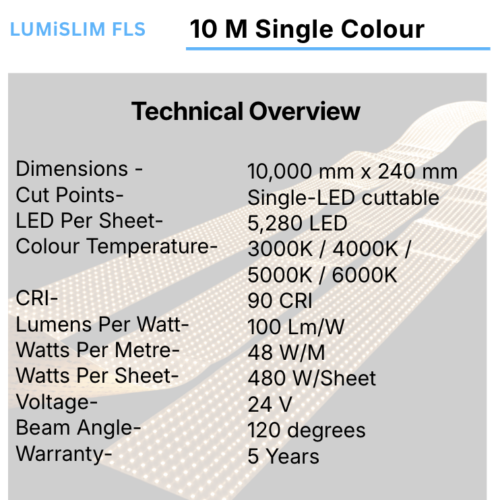

FLS-24-2835-10M
VOLTAGE 24 VDC
WATTAGE PER SHEET 480 W
SHEET SIZE (mm) 10,071.6 X 240 X 0.4 mm
LUMEN PER WATT 100 Lm/W
LED PER SHEET 5,060
CUTTING DETAILS EVERY LED / 28.1 x 28.1 mm
POWER CONNECTION MIDDLE
WARRANTY 3 YEARS
COLOUR OPTIONS 2,700, 3,000, 4,000, 5,000 & 6,500K
IP RATING 20
CRI 90

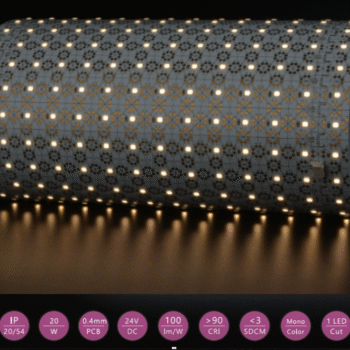

FLS-24-2835-242PRO-SC
VOLTAGE 24 VDC
WATTAGE PER SHEET 20 W
SHEET SIZE (mm) 490 X 245 X 0.4 mm
LUMEN PER WATT 100 Lm/W
LED PER SHEET 242
CUTTING DETAILS EVERY LED / 22.3 x 22.3 mm
POWER CONNECTION MIDDLE
WARRANTY 3 YEARS
COLOUR OPTIONS 2,700, 3,000, 4,000, 5,000 & 6,500K
IP RATING 20
CRI 90
FLS-24-2835ULT-288-SC
VOLTAGE 24 VDC
WATTAGE PER SHEET 17.2 W
SHEET SIZE (mm) 480 X 240 X 0.4 mm
LUMEN PER WATT 100 Lm/W
LED PER SHEET 288
CUTTING DETAILS EVERY LED / 20 x 20 mm
POWER CONNECTION END
WARRANTY 3 YEARS
COLOUR OPTIONS 2,700, 3,000, 4,000, 5,000 & 6,500K
IP RATING 20
CRI 90

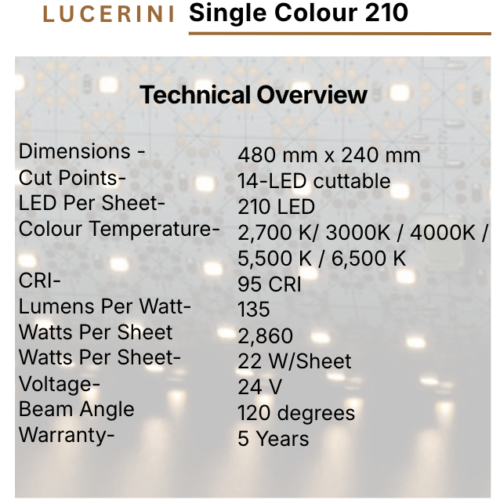

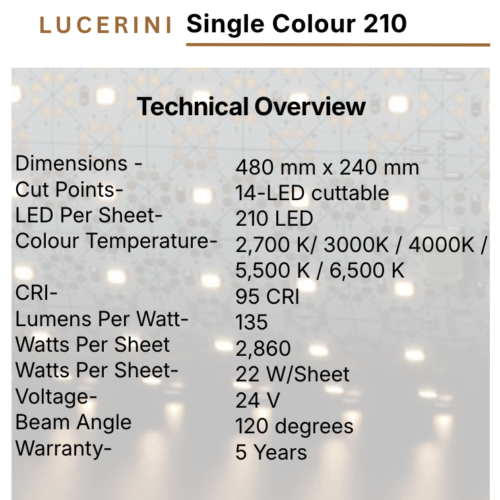

FLS-24-2835ULT-210-SC
VOLTAGE 24 VDC
WATTAGE PER SHEET 22 W
SHEET SIZE (mm) 480 X 240 X 0.4 mm
LUMEN PER WATT 130 Lm/W
LED PER SHEET 210
CUTTING DETAILS 14 LED / 160 x 48 mm
POWER CONNECTION END
WARRANTY 3 YEARS
COLOUR OPTIONS 2,700, 3,000, 4,000, 5,000 & 6,500K
IP RATING 20
CRI 90
FLS-24-2835ULT-192-SC
VOLTAGE 24 VDC
WATTAGE PER SHEET 19.2 W
SHEET SIZE (mm) 480 X 240 X 0.4 mm
LUMEN PER WATT 130 Lm/W
LED PER SHEET 192
CUTTING DETAILS 6 LED / 160 x 48 mm
POWER CONNECTION END
WARRANTY 3 YEARS
COLOUR OPTIONS 2,700, 3,000, 4,000, 5,000 & 6,500K
IP RATING 20
CRI 90

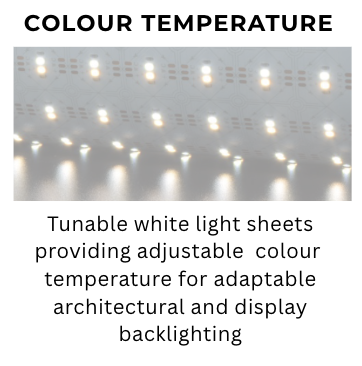

FLS-24-2835ULT-420-CCT
VOLTAGE 24 VDC
WATTAGE PER SHEET 25 W
SHEET SIZE (mm) 480 X 240 X 0.4 mm
LUMEN PER WATT 130 Lm/W
LED PER SHEET 420
CUTTING DETAILS 28 LED / 160 x 48 mm
POWER CONNECTION END
WARRANTY 3 YEARS
COLOUR OPTIONS COLOUR TEMPERATURE – 2,700 – 6,500K
IP RATING 20
CRI 90
FLS-24-2835ULT-384-CCT
VOLTAGE 24 VDC
WATTAGE PER SHEET 19.2 W + 19.2 W
SHEET SIZE (mm) 480 X 240 X 0.4 mm
LUMEN PER WATT 130 Lm/W
LED PER SHEET 384
CUTTING DETAILS 12 LED / 60 x 60 mm
POWER CONNECTION END
WARRANTY 3 YEARS
COLOUR OPTIONS COLOUR TEMPERATURE – 2,700 – 6,500K
IP RATING 20
CRI 90
FLS-24-2835ULT-256-CCT
VOLTAGE 24 VDC
WATTAGE PER SHEET 12.8 W + 12.8 W
SHEET SIZE (mm) 480 X 240 X 0.4 mm
LUMEN PER WATT 130 Lm/W
LED PER SHEET 256
CUTTING DETAILS 2 LED / 30 x 30 mm
POWER CONNECTION END
WARRANTY 3 YEARS
COLOUR OPTIONS COLOUR TEMPERATURE – 2,700 – 6,500K
IP RATING 20
CRI 90
FLS-24-2835ULT-336-RGB-CCT
VOLTAGE 24 VDC
WATTAGE PER SHEET 30 W
SHEET SIZE (mm) 480 X 240 X 0.4 mm
LUMEN PER WATT 130 Lm/W
LED PER SHEET 336
CUTTING DETAILS 42 LED / 240 x 60 mm
POWER CONNECTION END
WARRANTY 3 YEARS
COLOUR OPTIONS COLOUR TEMPERATURE – RGB-2,700 – 6,500K
IP RATING 20
CRI 90

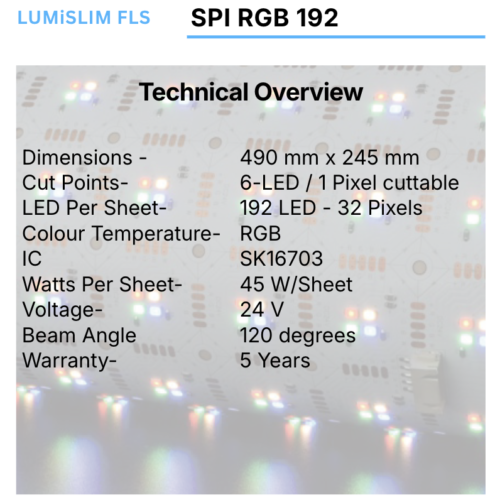

DIGITAL PIXEL FLS-24-DP5050-192RGB
VOLTAGE 24 VDC
WATTAGE PER METRE 42 W
SHEET SIZE (mm) 490 X 245 X 0.4 mm
IC/SKU 16703
LED PER SHEET 192
PIXEL PER SHEET 32
CUT POINTS 61.25 X 61.25 / 1 PIXEL / 6 LEDS
WARRANTY 5 YEARS
COLOUR OPTIONS RGB
IP RATING 20
CRI 90
