Lighting Control Systems
  -  Lighting Control Systems

DMX Controllers

DMX Controllers

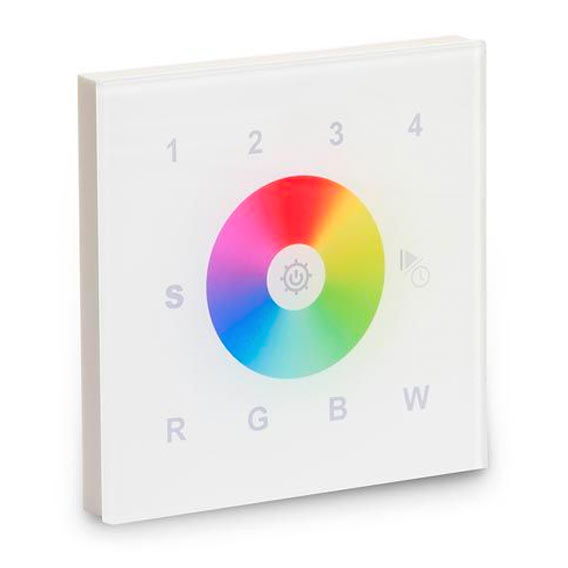

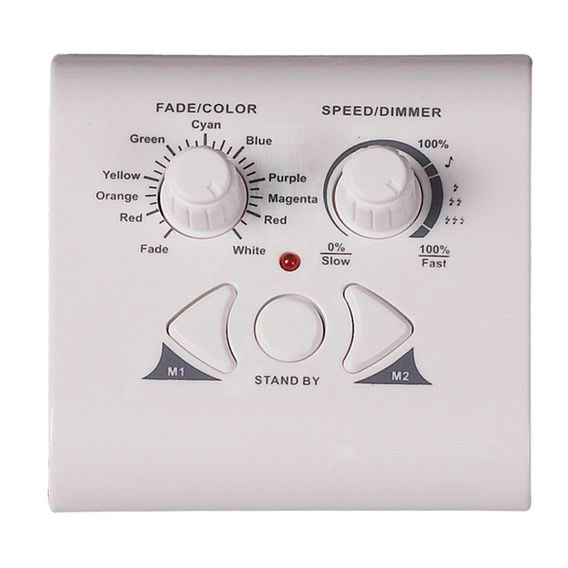

AL-DMX-WC4x1

The AL-DMX-WC4x1 is the perfect controller for adjusting the mood and
ambience in a Restaurant, Club or Hotel. Using DMX control, you are able
to adjust the colour and set scenes when using our proffesional range
of RGB or RGBW LED tapes, Wall washers or Effect Lighting.

Using the AL-DMX-WC4x1 is very simple, and with the added advantage of having an LED colour indicatior, you can see the selected colour on the
controller as well as the RGB/W fixture.

Key Feature

  1. RGB or RGBW ( 3 or 4 channel ) output
  2. Easy to use rotary controls-Colour and Speed/Dimming selection
  3. Colour chase (sound to light ) or colour fade / Static Colour selection
  4. Two preset memory options
  5. 12 V DC-Power supply supplied seperately
  6. Dimensions-85 x 85 x 40 mm

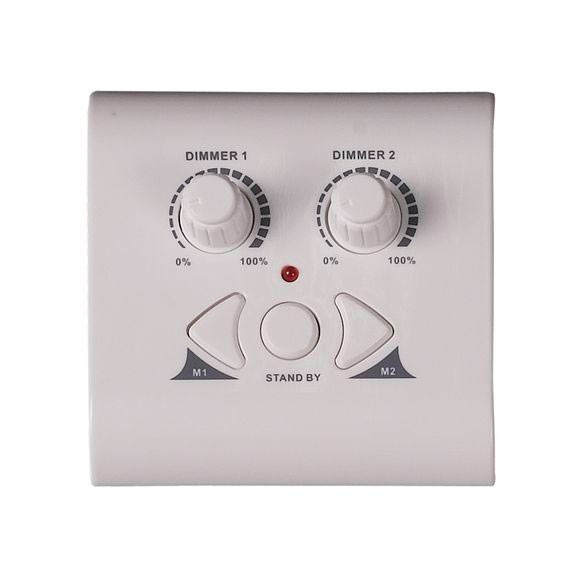

AL-DMX-WC2x1

The AL-DMX-WC2x1 is the perfect controller for adjusting the mood and
ambience in a Restaurant, Club or Hotel. Using DMX control,

this user friendly controller is perfect for dimming control over installed
single channel DMX fixtures such as LED flexible tape and basic stage
lighting. The AL-DMX-WC2x1 Dual Channel Wall Dimmer is designed with single colour LED tape in mind. The controller is suitable for installation
into single gang, electrical back boxes for convenient integration.

Key Feature

  1. 2 channel output can control 2 groups of single colour LED tape
  2. Easy to use 2 rotary controls- 0-100% dimming per DMX output
  3. Two preset memory options
  4. 12 V DC-Power supply supplied seperately
  5. Dimensions-84 x 84 x 40 mm

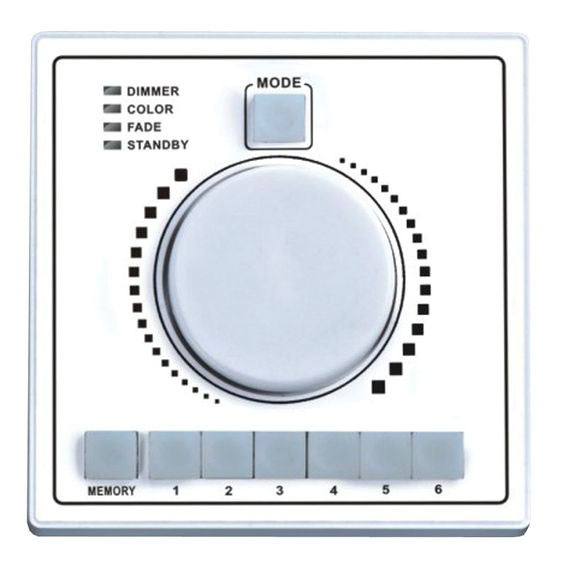

AL-DMX-WC4x6

The AL-DMX-WC4x6 is the ideal solutions for controlling 6 groups of fittings such as LED tape using DMX control. This controller can be switched from 3 or 4 channel modes allowing you to control RGB or RGBW LED tape.

Using the fantastic AL-DMX-WC4x6 has adjustable dimmer / colour / fade group by group facility.

This is the perfect DMX controller for controlling 6 seperate zones in a Restaurant, Club or Hotel and allows you full control over the ambience and mood of the venue.

Key Feature

  1. RGB or RGBW ( 3 or 4 channel ) output
  2. Controls 6 fittings or zones
  3. Adjustable dimmer/colour/fade group by group
  4. 6 group and save scene button
  5. Memory save button
  6. 12 V DC-Power supply supplied seperately
  7. Dimensions-87 x 87 x 38 mm

AL-DMX-WC4x4

The AL-DMX-WC4x4 is the ideal solutions for controlling 4 groups of fittings such as LED tape using DMX control. This controller can be switched from 3 or 4 channel modes allowing you to control RGB or RGBW LED tape.

The fantastic AL-DMX-WC4x4 has adjustable dimmer / colour / fade group by group facility.

This is the perfect DMX controller for controlling 4 seperate zones in a Restaurant, Club or Hotel and allows you full control over the ambience and mood of the venue.

Key Feature

  1. RGB or RGBW ( 3 or 4 channel ) output
  2. Input Voltage – 100 -240 V ac
  3. Output Signal – R.F 2.4 GHz, DMX512
  4. Control Mode- Synchronous Control
  5. Dimensions- L113 X W112 X H50 mm

DMX Drivers

DMX Drivers

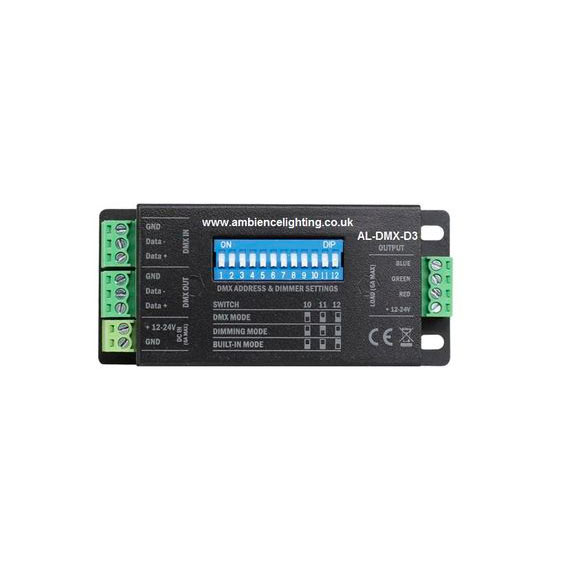

AL-DMX-D3

Introducing the DMX-D3 ( RGB LED DMX Driver). This working with our range of power supplies is suitable for Ambience Lighting’s proffesional range of RGB LED tapes and can be controlled from our extensive range of DMX controllers or by a DMX desk.

After connecting a RGB LED Strip with this RGB controller you can utilise
the manual dimming mode or built-in programs via the on-board
dipswitches. Further control can be facilitated by the units DMX input.

The AL-DMX-D3 The driver can also be used for 3 channels of single colour

Specifications

  • Power- 12 or 24 V – IP20
  • Dimensions: 18 x 90 x 40mm
  • Max Total Output- 7 A ( 72W @ 12 V or 144 W @ 24 V
  • Using a LPV-150-24 PSU and one AL-DMX-D3 you can run-
  • AL-5050-60-RGB ( 14.4 WPM ) – 10 metres
  • AL-5050-30-RGB ( 7.2 WPM ) – 20 metres

*Recommended max length of LED tape powered at one end- 7 metres or, 15 metres if power is injected at both ends *

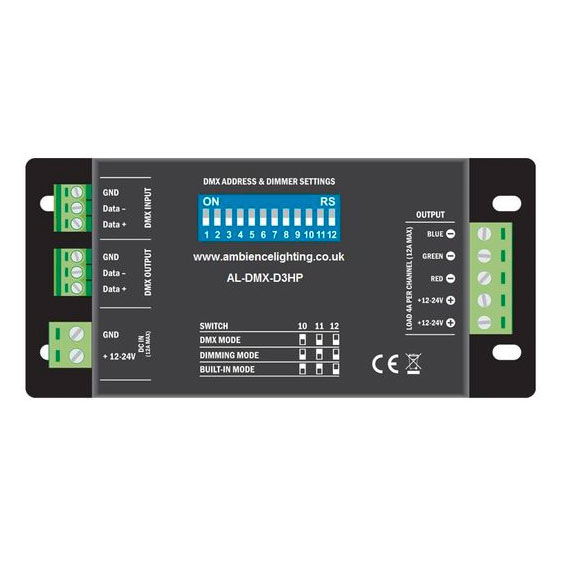

AL-DMX-D3HP

Introducing the DMX-D3HP (RGB LED DMX Driver) which is ideal 24V RGB
colour tapes requiring constant voltage control. After connecting RGB LED tape with this controller you can utilise the manual dimming mode or built-in programs via the on-boarddipswitches. Further control can be facilitated by the units DMX input.

Specifications

  • Power- 12 or 24 V – IP20
  • Dimensions: 24.5 x 115 x 54mm
  • Max Total Output- 12 A ( 144 W @ 12 V or 288 W @ 24 V
  • Using a HLG-320-24 PSU and one AL-DMX-D3HP you can run-
  • AL-5050-60-RGB ( 14.4 WPM ) – 20 metres
  • AL-5050-30-RGB ( 7.2 WPM ) – 40 metre

*Recommended max length of LED tape powered at one end- 7 metres or, 15 metres if power is injected at both ends *

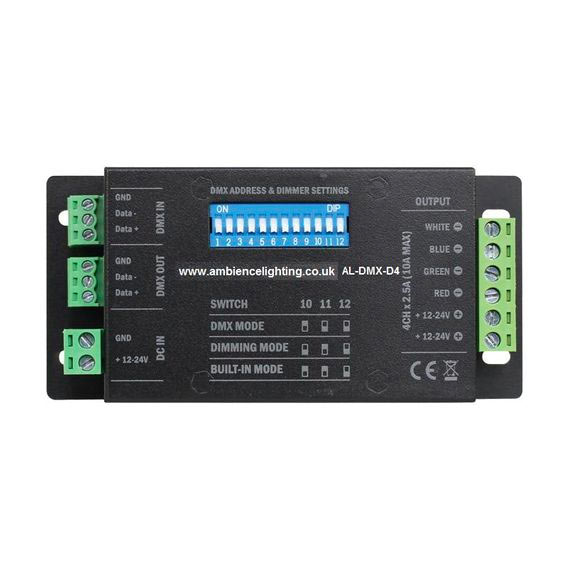

AL-DMX-D4

Introducing the AL-DMX-D4 (RGBW LED DMX Driver) which is ideal for controlling our RGBW LED Tapes (AL-5050-60-RGBW) requiring constant voltage control.

After connecting a RGBW LED Strip(s) with this RGBW controller you can utilise the manual dimming mode or built-in programs via the on-board
dipswitches. Further control can be facilitated by the units DMX input.
The driver can also be used for 4 channels of single colour LED tape

Specifications

  • Power- 12 or 24 V – IP20
  • Dimensions: 24 x 105 x 54 mm
  • Max Total Output- 10 A ( 120 W @ 12 V or 244 W @ 24 V
  • Using a HLG-240-24 PSU and one AL-DMX-D4 you can run-
  • AL-5050-60-RGBW (19.2 WPM)- 10 metres

*Recommended max length of LED tape powered at one end- 7 metres or, 15 metres if power is injected at both ends*

Smart Tape Controllers

Smart Tape Controllers

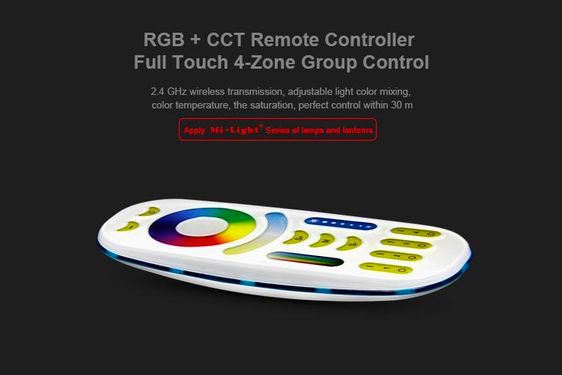

AL-FUT92

Mi-Light FUT92 Wireless 2.4GHz 4-zone RGB+CCT remote controller

  • Voltage: 3V(sevtion 2 batteries)
  • Transmission Frequency: 2.4GHz
  • Modulation Method: GFSK
  • Transmitting Power: 6dBm
  • Standy Power Consumption: 20uA
  • Control Distance: 30m
  • Size: 138*56*38mm

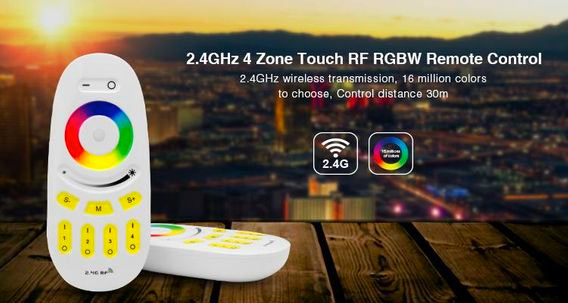

AL-FUT96

Mi-Light FUT96 Wireless 2.4GHz 4-zone RGB/RGBW remote controller

  • Voltage: 3V (sevtion 2 batteries)
  • Transmission Frequency: 2.4GHz
  • Modulation Method: GFSK
  • Transmitting Power: 6dBm
  • Standy Power Consumption: 20uA
  • Control Distance: 30m
  • Size: 120 * 52 * 20 mm

AL-FUT006

Product Name: 2.4GHz 4 Zone RF Rotating Wheel Remote Control

  • Voltage: 3V (sevtion 2 batteries)
  • Transmission Frequency: 2.4GHz
  • Modulation Method: GFSK
  • Transmitting Power: 6dBm
  • Standy Power Consumption: 20uA
  • Control Distance: 30m
  • Size: 110 * 53 * 22 mm

AL-T2

Product Name: 4- Zone CCT Adjust Smart Panel Remote Controller

  • Model No. T2
  • Voltage: AC90 – 110 V or AC180 -240 V
  • Transmission Frequency: 2400 -2483.5 MHz
  • Modulation Method: GFSK
  • Transmitting Power: 6dBm
  • Control Distance: 30m
  • Size: 86 * 86 mm

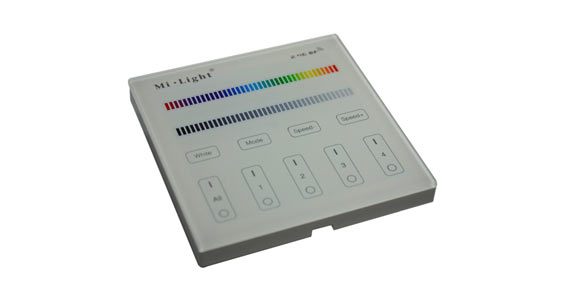

AL-T3

Product Name: 4- Zone RGB/ RGBW Smart Panel Remote Controller

  • Model No. T3
  • Voltage: AC90 – 110 V or AC180 -240 V
  • Transmission Frequency: 2400 -2483.5 MHz
  • Modulation Method: GFSK
  • Transmitting Power: 6dBm
  • Control Distance: 30m
  • Size: 86 * 86 mm

AL-T4

Product Name: 4-Zone RGB+CCT Smart Panel

  • Remote Controller
  • Model No.: T4
  • Working Temperature: -20 -60℃
  • Voltage: AC90‾110V or AC180‾240V
  • Transmission Frequency: 2400-2483.5MHz
  • Modulation Method: GFSK
  • Transmitting Power: 6dBm
  • Control Distance: 30m
  • Panel Size: 86*86mm

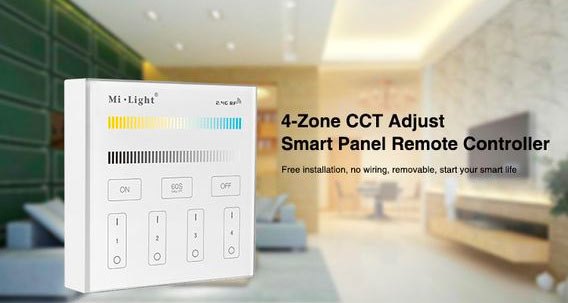

AL-B2

Product Name: 4- Zone CCT Adjust Smart Panel Remote Controller

  • Model No. B2
  • Voltage: 3 V ( 2 x AAA Battery )
  • Transmission Frequency: 2400 -2483.5 MHz
  • Modulation Method: GFSK
  • Transmitting Power: 6dBm
  • Control Distance: 30m
  • Size: 86 * 86 mm

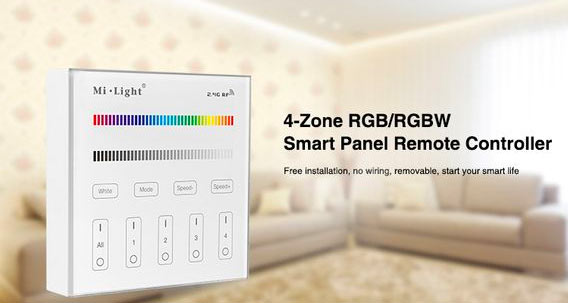

AL-B3

Product Name: 4- Zone RGB/ RGBW Smart Panel Remote Controller

  • Model No. B3
  • Voltage: 3 V ( 2 x AAA Battery )
  • Transmission Frequency: 2400 -2483.5 MHz
  • Modulation Method: GFSK
  • Transmitting Power: 6dBm
  • Control Distance: 30m
  • Size: 86 * 86 mm

Smart Tape Drivers

AL-FUT036

  • The frequency of communication with the controller: 2.4 Ghz !!!
  • Supports Wi-Fi: Yes – if you only buy WIFI adapter *
  • Control the phone / Smartphone’m – Tablet: YES – if you only buy WIFI adapter * and uploading the appropriate application on Android or iOS (Apple) **
  • Memory of the last program / setting: YES
  • Input voltage: DC 12-24V
  • Maximum output current: 24A (6A per channel color)
  • Power output: 288 W max
  • Connection to strip Single Colour : by 2-wire cable – twisted ankle
  • Controller Dimensions: 86x46x23 mm (D, S, W)
  • Connection to strip Single Colour, V +)-

AL-FUT038

  • The frequency of communication with the controller: 2.4 Ghz !!!
  • Supports Wi-Fi: Yes – if you only buy WIFI adapter *
  • Control the phone / Smartphone’m – Tablet: YES – if you only buy WIFI adapter * and uploading the appropriate application on Android or iOS (Apple) **
  • Memory of the last program / setting: YES
  • Input voltage: DC 12-24V
  • Maximum output current: 24A (6A per channel color)
  • Power output: 288 W max
  • Connection to strip RGBW: by 5-wire cable – twisted ankle
  • Controller Dimensions: 86x46x23 mm (D, S, W)
  • Connection to strip RGBW: 5 channels (Red, Green, Blue, White, V +)-

Casambi Lighting Control

The Casambi solution is based on Bluetooth Low Energy, the state-of-the-art wireless technology and the only low power wireless technology in all modern smartphones, tablets and even smartwatches, making it the only mainstream and future proof low power radio technology in the world.

CBU-A2D Bluetooth controllable 2ch 0-10V/DALI controller

CBU-A2D is a Bluetooth controllable, Casambi enabled 2 channel 0-10V/DALI controller. CBU-A2D has a universal 100-277 VAC input voltage range.

CBU-A2D can control one or two 0-10V controllable LED drivers, or it can control a tunable white LED driver with two 0-10V control interfaces. The product can also be configured into a DALI mode where it can be connected to a DALI LED driver or DALI sensor for the presence and/or daylight harvesting functions.

DATA SHEET

CBU-ASD Control Unit

CBU-ASD is a wireless control unit for LED and halogen drivers with 0-10V, 1-10V or DALI dimming interface. The control output can be configured either as analogue 0-10V (and 1-10V) or as a digital standalone DALI control interface.

When the output is configured as Standalone DALI [1], CBU-ASD acts both as a controller and as a power supply making it possible to connect directly to an LED driver with DALI interface without the need for an external DALI power supply. This so-called Standalone DALI makes it possible to implement multi-channel lighting systems with adjustable color (RGB) or color temperature, while keeping the wiring and number of components at their minimum.

DATA SHEET

CBU-TED Bluetooth controllable dimmer

CBU-TED is a Bluetooth controllable, Casambi enabled trailing-edge dimmer for operation of incandescent lamps, dimmable LED lamps and dimmable LED control gear. It can be installed behind a traditional wall switch, inside a luminaire or into a ceiling outlet box. Maximum allowable ambient temperature must be observed.

DATA SHEET

CBU-DCS Bluetooth controllable DALI controller

CBU-DCS is a Bluetooth controllable, Casambi enabled DALI controller. CBU-DCS does not have its own power supply. Instead, it is powered directly from a DALI bus.

DATA SHEET

CBU-PWM4 Bluetooth controllable dimmer

CBU-PWM4 is a Bluetooth controllable, Casambi enabled four channel PWM dimmer for constant voltage LED loads, such as LED strips and constant voltage LED modules. It is connected between a 12-24 VDC power supply and the constant voltage LED load.

DATA SHEET

CBU-ASR Bluetooth controllable 2ch 0-10V controller

CBU-ASR is a multi-purpose wireless control unit. It has two 0-10 VDC outputs. For tunable white applications, it is an ideal match for one or two-channel dim-to-off drivers that provide auxiliary power. It can also be used with industry-standard power packs to turn on and off large electrical loads.

DATA SHEET

Casambi Xpress

CXpress is a wireless user interface that can be configured via the Casambi app. The four target buttons can control a scene or an animation of the user’s choise or simply one luminaire, one luminaire group or all lamps together if so desired.

Xpress has buttons for dimming. By once tapping the ‘dim down’ button the chosen luminaire or luminaire group will go to 0%. When the ‘dim up’ button is once tapped the luminaire or luminaire group will instead go to 100%. By holding one of the dim-buttons the luminaire or luminaire group will dim smoothly.

DATA SHEET

CBM-002 Bluetooth module

CBM-002A/B is a Class 2 embedded Bluetooth 4.0 module designed to be integrated into LED drivers, different lighting control applications, light fixtures and LED bulbs. It is pre-programmed with Casambi’s proprietary firmware making it completely compatible with other Casambi enable devices.

CBM-002A/B is controlled wirelessly with Casambi smartphone and tablet applications using Bluetooth 4.0 protocol. Devices form automatically a self-healing and self-organizing wireless mesh network so that a large number of fixtures can be controlled from any point. No external gateway module is needed.

DATA SHEET
